Project Summary
Project Summary
Client: Dublin University, Trinity College (TCD)
Architect: Scott Tallon Walker
Location: Dublin, Ireland
Value: €80m
Completion Date: May-2019

About the Project

The award-winning Trinity College Dublin Business School is a state-of-the-art development located on the Trinity campus. This project involved a new build as well as refurbishing existing buildings for student accommodation. The aims were to support a growing entrepreneurial culture among Trinity’s students and faculties, drive job creation in the city centre, and help position Dublin as a global node for innovation and start-up enterprises.

Spanning some 13,000m2 with six storeys above ground and three below, the new Business School includes a 600-seat auditorium, Lecture Theatres, Innovation Hub, Post-Graduate office spaces, smart classrooms, a rooftop conference room, and public space where students can meet and exchange ideas. An additional refurbishment formed part of the overall Project, comprising of Student Residential Accommodation within protected structures and Café.

The project is primarily naturally ventilated from atrium and double-skin façade arrangements, whilst minimising energy consumption and maintenance requirements. Energy reduction has been achieved through a combination of passive design features including natural ventilation and daylight, in conjunction with low-energy systems such as displacement ventilation to auditorium, supplemented by renewable technologies like photovoltaic array to achieve NZEB performance.

The building’s energy performance has been confirmed to be in accordance with the Near Zero Energy Building (NZEB) Directive as implemented within TGD Part L 2017 of the Building Regulations; despite having been designed in advance of this definition (2014-2015) and is thus envisaged to be one of the first prestigious projects in Ireland to achieve this.

Ee0a99f4 2c66 48af 9f55 e0508fa44bef

An exemplar low energy, low maintenance building, which will provide efficiency and cost benefits to the university long into the future

3e92376f 2279 4d5c 9247 7fe9f5ab0440

To ensure the school is well linked and engaged with its local industry, a centre for digital business was developed with the focus on finance and entrepreneurship, already fast becoming one of the top-rated European schools for entrepreneurship

7c226090 1e72 47e6 873a 3b8b8c348cff copy
Fe392eba 7527 4849 97be 8d4e8edb3a49

IN2 was appointed, following a competitive tendering procedure, as mechanical and electrical design consultants on this unique project.

The project which was awarded the Irish Building & Design Awards Education/School Building of the Year 2019. The building has been designed to promote the health and wellbeing of users to the maximum extent possible. All workspaces have ample natural light, good air quality and access to natural greenery. A high standard of acoustic design reduces noise distractions contributing to a pleasant and comfortable working environment.

7f294bab b2d6 4e80 b3b6 831bbf6d86f6
9fc74f57 c975 43de a063 73417784461b
A25c272e 8dba 4ffb 9904 77a407f10cbb

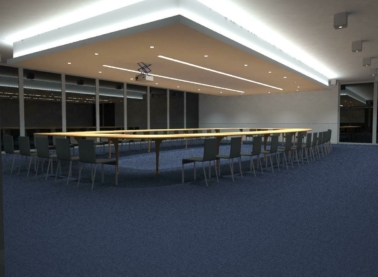

Boardroom 01

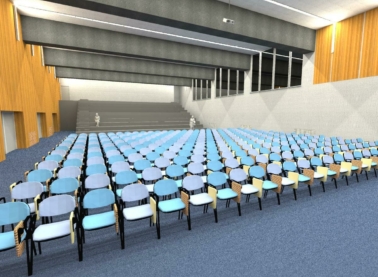

Auditorium 01 Ceiling Mounted

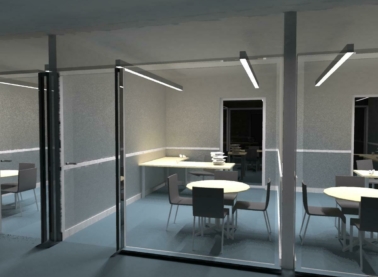

Office 03
Project Tags:
M&E Design
BIM
Sustainability
Wind Analysis
Daylight / Sunlight Analysis
Dynamic Thermal Modelling
IN2 Building Life
IN2 Light
BREEAM / LEED / WELL
NZEB
Lighting Simulation
New Build
Mixed-use
Innovation Centre
Ireland
